2011 Harley-Davidson XL 883L Sportster 883 SuperLow


Click photos to enlarge.
They make great desktop images.

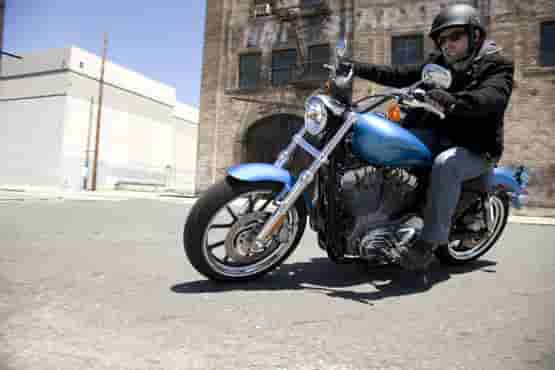

2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow
2011 Harley-Davidson XL 883L Sportster 883 SuperLow


- 2011 Harley-Davidson XL 883L Sportster 883 SuperLow

2011 Harley-Davidson XL 883L Sportster 883 SuperLow
The SuperLow™ is easy to own and fun to ride. Balanced and responsive handling help rider and machine glide through corners with smooth confidence. The combination of wheel size, radial tires and front-end geometry contribute to outstanding maneuverability. The final drive ratio is matched to the rear wheel size to provide smooth acceleration. Generous rear-suspension travel, a deeply cushioned seat and easy-reach handlebar offer outstanding comfort. A low seat height, the broad V-Twin powerband and clean styling complete a package that will make the SuperLow appealing to many riders.
The new Harley-Davidson SuperLow model reintroduces the pure pleasure of motorcycling. Balanced and responsive handling help rider and machine glide through corners with smooth confidence. A low seat height, the broad V-Twin powerband and clean styling complete an appealing package. The SuperLow is an open invitation to get out and ride.
Comfort is a key aspect of the SuperLow experience. A new solo seat with a deep, bucket shape and soft filler offers good support. The shape of the seat and its 25.5-inch height make it possible for many riders to put feet securely on the ground when the bike is at rest. A new handlebar is shaped to provide a natural arm position. Dual coil-over rear shocks offer 2.5 inches of wheel travel for a smooth ride.
Several interdependent technical elements play a role in the particular vehicle dynamics Harley-Davidson engineers sought to achieve in the SuperLow model. Changes made to tire size and a new front fork angle give the SuperLow 5.7 inches of trail for outstanding steering feel and feedback to the rider.
"In engineering the tire-and-wheel design and steering geometry for the SuperLow, the team applied lessons learned in the development of the XR1200X, which result in similarly significant gains in maneuverability," said Jim Hofmann, General Manager, Motorcycle Product Planning. "The SuperLow is of course a very different motorcycle from the XR1200X, with a different mission, but the theme of achieving a precise balance of steering geometry, tire profile and construction, and suspension tuning is the same and equally successful. It takes just one ride on the SuperLow to believe it."
The 18-inch-diameter front wheel and 17-inch rear wheel are fitted with Michelin® Scorcher® 11 radial tires. The profile, tread pattern and construction of these tires were developed specifically to enhance the handling of the SuperLow model. The new wheel-and-tire combination significantly reduces mass and inertia front and rear, which when combined with the tire design, improves steering response, and reduces steering effort.
Its low-profile radial tires, solo seat and long fuel tank shape give the SuperLow an appealing new stance that's wide and low. With an MSRP starting at $7,999USD in Vivid Black, the SuperLow is the lowest-priced model in the 2011 Harley-Davidson line. The SuperLow is also available in Cool Blue Pearl, as well as Merlot Sunglo/Vivid Black and Birch White/Sedona Orange two-tone paint.


Harley-Davidson XL 883L Sportster 883 SuperLow model Highlights

NEW Black, split 5-spoke cast wheels with machined rims

NEW Wheel size: front 18 x 3.5 inches, rear 17 x 4.5 inches

NEW Michelin® Scorcher™ 11 radial tires: Front 120/70ZR18; rear 150/60ZR17

NEW Front end geometry contributes to confident handling

NEW 68/29 (2.34:1) final drive ratio for smooth acceleration

NEW 4.5-gallon fuel tank for extended range

NEW Solo seat with deep bucket shape is easy to straddle, seat height is 25.5 inches

NEW Easy-reach handlebar

NEW Revised rear suspension with 2.5 inches wheel travel for added comfort

o Silver, powder-coated engine with polished covers

o Chrome exhaust with dual staggered shorty mufflers

o Full-coverage rear fender with painted supports

o Sport front fender

o Polished headlamp visor



Key Harley-Davidson XL 883L Sportster 883 SuperLow Features
The SuperLow™ is easy to own and fun to ride. Balanced and responsive handling help rider and machine glide through corners with smooth confidence.

The combination of wheel size, radial tires and front-end geometry contribute to outstanding maneuverability. The final drive ratio is matched to the rear wheel size to provide smooth acceleration. Generous rear-suspension travel, a deeply cushioned seat and easy-reach handlebar offer outstanding comfort. A low seat height, the broad V-Twin powerband and clean styling complete a package that will make the SuperLow appealing to many riders.

o Evolution® V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI)

o Rubber-mounted powertrain to reduce vibration

o 5-speed Transmission

o Dual staggered exhaust

o Disc brakes

o Mid-mount foot controls

o Handlebar-mounted electronic speedometer

o Optional Harley-Davidson® Smart Security System with hands-free security fob





2011 Harley-Davidson XL 883L Sportster 883 SuperLow - USA Specifications
U.S. MSRP - Vivid Black $7,999, Solids $8,289, Two-Tones $8,499


DIMENSIONS
Length 86.1 in. (2187 mm)
Overall Width 36.6 in. (929 mm)
Overall Height 47.6 in. (1209 mm)
Seat Height:
o Laden2 25.5 in. (648 mm)
o Unladen 26.8 in. (681 mm)
Ground Clearance 3.8 in. (97 mm)
Rake (steering head) 31°
Fork Angle 29.6°
Trail 5.7 in. (145 mm)
Wheelbase 59.3 in. (1506 mm)
Tires (Michelin® Scorcher™ "11" front and rear):
o Front - Scorcher™ "11"
o Rear - Scorcher™ "11" 120/70 ZR-18 150/60 ZR-17
Fuel Capacity 4.5 gal. (17.0 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 2.8 qts. (2.6 L)
Transmission Capacity 1.0 qts.

Weight:
o As Shipped 536 lbs. (234.1 kg)
o In Running Order
o Gross Vehicle Weight Rating 563 lbs. (255.4 kg)
o Gross Axle Weight Rating 1000 lbs. (453.6 kg)
o Front 339 lbs. (154.0 kg)
o Rear 661 lbs. (300.0 kg)


ENGINE
Engine3 Air-cooled, Evolution®
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3 in. x 3.812 in. (76.2 mm x 96.8 mm)
Displacement 53.9 cu. in. (883 cc)
Compression Ratio 8.9:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper cartridge type
Lubrication System Dry-sump

DRIVETRAIN
Primary Drive Chain, 57/34 ratio
Final Drive Belt, 68/29 ratio
Clutch Multi-plate, wet
Transmission 5-speed
U.S Gear Ratios (overall):
o 1st 10.407
o 2nd 7.436
o 3rd 5.53
o 4th 4.583
o 5th. 3.93



CHASSIS
Frame Mild steel, tubular frame; circular sections; cast junctions
Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Forks 39 mm Showa®
Rear Shocks Coil-over; preload dual-adjustable
Wheels4: Black, Split 5-Spoke with Machined Rim
o Front 18 in. x 3.5 in. (457 mm x 89 mm)
o Rear 17 in. x 4.5 in. (432 mm x 114 mm)
Brakes:
o Caliper Type Dual-piston front, single-piston rear
o Rotor Type Patented, uniform expansion rotors (diameter x width):
o Front 11.5 in. x .2 in. (292 mm x 5 mm)
o Rear 10.24 in. x .28 in. (260 mm x 7 mm)
Suspension Travel:
o Front Wheel 4.26 in. (108 mm)
o Rear Wheel 2.12 in. (54 mm)

PERFORMANCE
Engine Torque5 (per SAE J1349):
o North America 55 ft. lbs. @ 3500 RPM (75 Nm @ 3500 RPM)
Lean Angle:
o Right 24.7°
o Left 24.4°
Fuel Economy6
(EPA urban/highway test) 45/60 mpg (5.23/3.92 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating) Sealed lead acid, maintenance-free, 12V, 12 amp/hour, 200 cca
Charging 30-amp, permanent magnet, single-phase alternator with solid-state regulator (405W @ 3000 RPM, 405W peak)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W per lamp
o Turn Signal Lights 28W self-canceling
o Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system7 (optional)

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.




2011 Harley-Davidson XL 883L Sportster 883 SuperLow - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS Metric Units
Length 2215 mm
Seat Height
Laden 1
Unladen 1 695 mm
Ground Clearance 100 mm
Rake Steering Head
Trail 145 mm
Wheelbase 1500 mm
Fuel Capacity 17 L
Oil Capacity 2.65 L
Weight
Dry Weight 251 kg
Running Order 260 kg
Luggage Capacity
Volume
Weight


POWERTRAIN
Engine 2 Air-cooled, Evolution®Air-cooled, Evolution®
Displacement 883 cc
Bore x Stroke in. / in.76.2 mm / 96.8 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm74 Nm @ 3750 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 8.9:1
Primary Drive Chain, 34/57 ratioChain, 34/57 ratio


Fuel Economy
Fuel Economy City 5 5.23 l/100km
Fuel Economy Hwy 5 3.92 l/100km
Gear Ratio (Overall)
1st 10.407
2nd 7.436
3rd 5.53
4th 4.583
5th 3.93
6th


WHEELS / TIRES
Wheels
Front 6 Black, Split 5-Spoke with Machined RimBlack, Split 5-Spoke with Machined Rim
Wheel Option 6
Rear 6 Black, Split 5-Spoke with Machined RimBlack, Split 5-Spoke with Machined Rim
Tire Size
Front
Rear

ELECTRICAL
Instruments Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, low battery, security system (optional)High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, low battery, security system (optional)

CHASSIS
Brakes Dual-piston front, single-piston rearDual-piston front, single-piston rear
Parking Brake
Lean Angle
Exhaust System Chrome, staggered shorty exhaust with dual mufflersChrome, staggered shorty exhaust with dual mufflers


COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Merlot Sunglo / Vivid Black
Birch White / Sedona OrangeVivid Black
Cool Blue Pearl
Merlot Sunglo / Vivid Black
Birch White / Sedona Orange


1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.


Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
